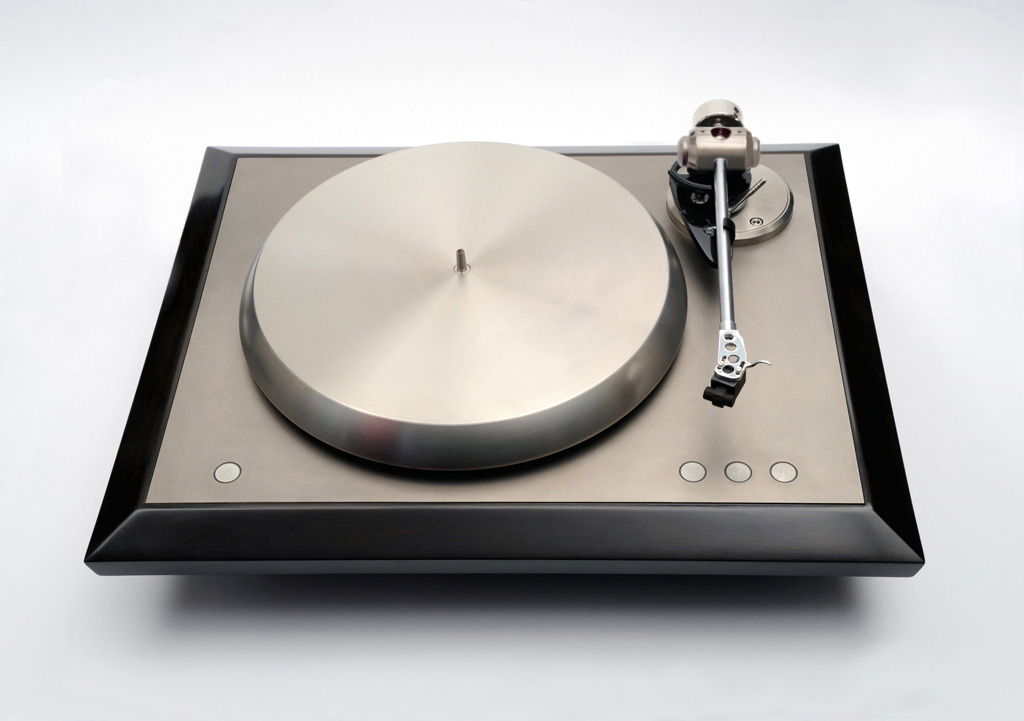

mystere

superlative limited edition turntable, featuring
unprecedented levels of ultra-precision engineering,
true balanced spectrum design, materials, and construction,
for ultimate signal fidelity, overtone preservation and
harmonic integrity in lp playback.

drive train

proprietary, direct coupled drive train and air bearing technology, developed in
cooperation with a leading technical university research laboratory.

cogging free, multiple pole, high torque motor, designed and built to molecular-
mechanics research standards. exhibits zero disperse magnetic flux effects.

motor spin capacity of up to 1.2 tons eliminates all grove tracing “brake” effects on the
platter, providing dynamic signal tracing fidelity and timing precision well beyond
conventional belt drive, direct drive and idler wheel drive technologies.

re-programmable, “soft” algorithm, logic drive controller with 16 million times per rotation (320000 x 4096) resolution adjusted for speed ripple < 0,08 .

electronic speed selection, 33 and 45 rpm ( 78 rpm & other formats on request).

bearing

custom aerostatic platter bearing, designed and built to molecular-mechanics research standards for the lowest, technically possible, bearing friction in all climate conditions.

maintains the platter fully air suspended with zero mechanical contact to the rest of the turntable. provides ultimate immunity of the grove reading process from environmental mechanical impacts and chassis-to-platter energy feedback and feed through effects.

platter radial run out (spindle centering) and axial run out (planarity) < 1 micron.

platter

high inertia, resonance optimized, variable curve and angle geometry platter, manufactured from proprietary “balanced spectrum alloy” tm .

dramatically reduces parasitic resonances, energy storage and delayed release (memory) effects without signal altering and annihilating damping technologies.

enables superior grove decoding precision without time-smear, overtone obfuscation and loss of emotionally crucial subtle musical content.

chassis

modular chassis construction. proprietary, “balanced spectrum” alloy core with optimized mechanical grounding and vibration energy evacuation design. selected, musical instrument grade materials and assembling technics.

design free of damping compounds, aggressive synthesis- and unnatural spectrum materials, results in unprecedented preservation of natural voicing and overtone harmonics, subtle transients and time-structure information.

proprietary, patented, “mechanical diode” decoupling system, provides a predominantly one-directional vibration evacuation pathway -out of the turntable – via precision machined, controlled crystallization vector materials.

interchangeable, solid wood frame, available in ebony, palisander and rosewood. additional woods and black piano lacquer available on request.

air-supply

self contained, laboratory quality compressor unit with integrated air-filter and reservoir, cooling and moisture extraction facilities. logic controller with comprehensive safe-run and protection routines. digital air pressure and status display.

all metal parts laser cut to sub micron precision. outboard compressor / controller unit contained in silver anodized, solid metal casing.

turntable: 50 cm wide and 40 cm deep, weight 45 kg,

outboard compressor & controller unit: 54 cm long, 40 cm wide, 40 cm deep, weight 45 kg,

integrated air supply and drive control interlink cable 2 m (additional lengths up to 10 m on request) universal voltage design

certified CE, RAEE, ROHS
